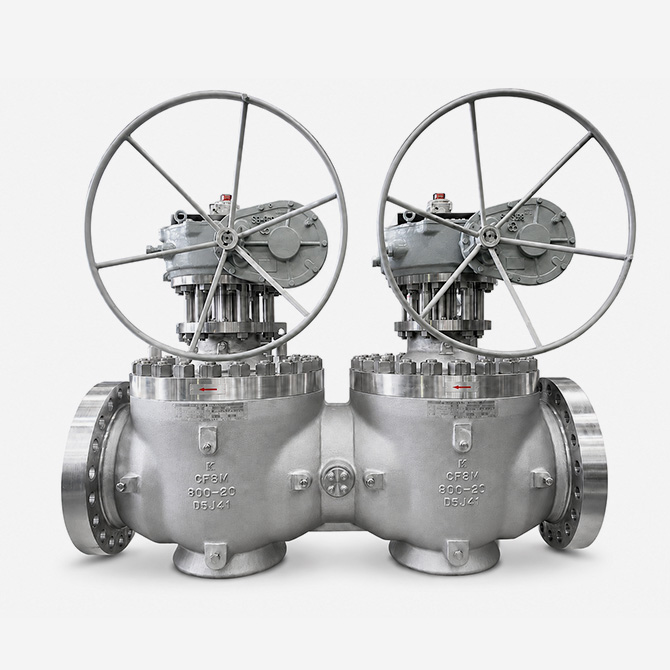

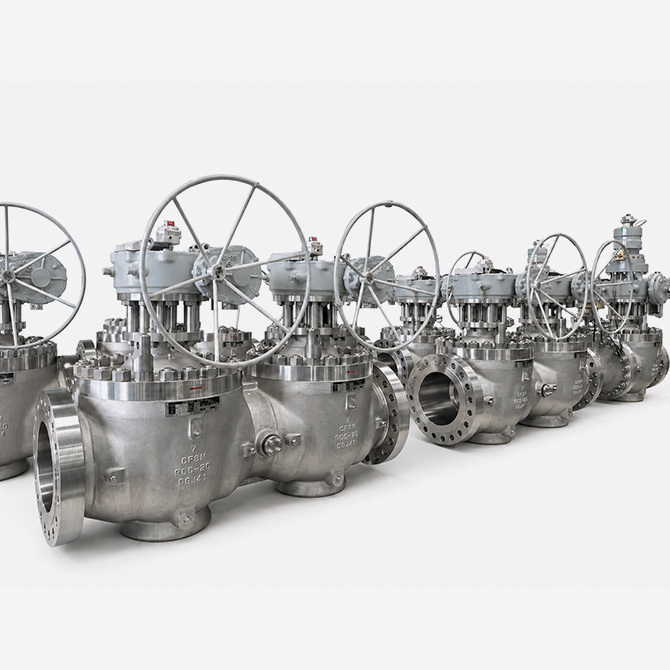

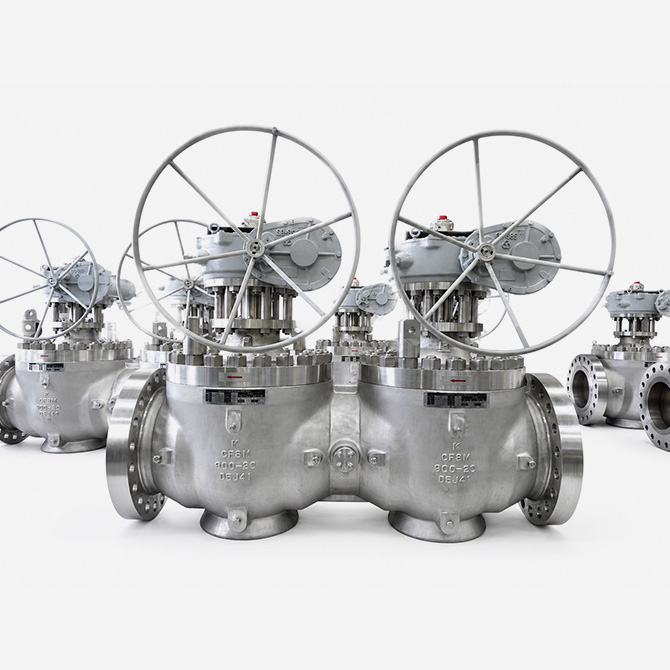

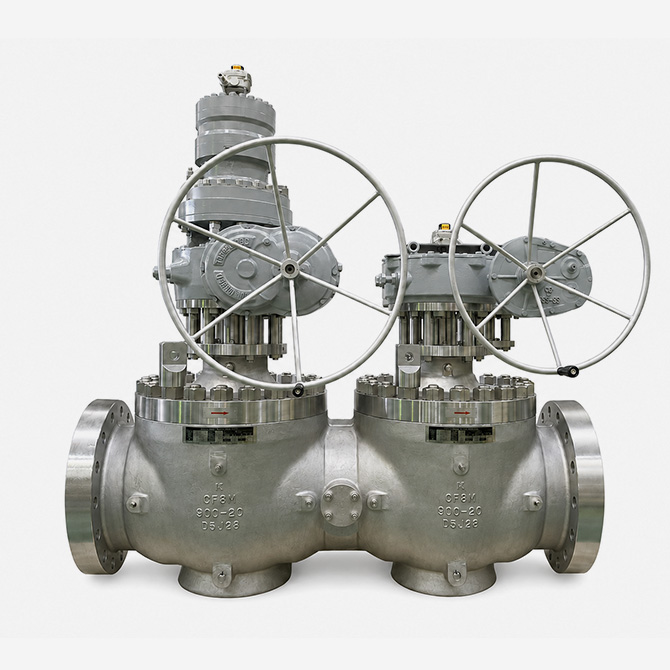

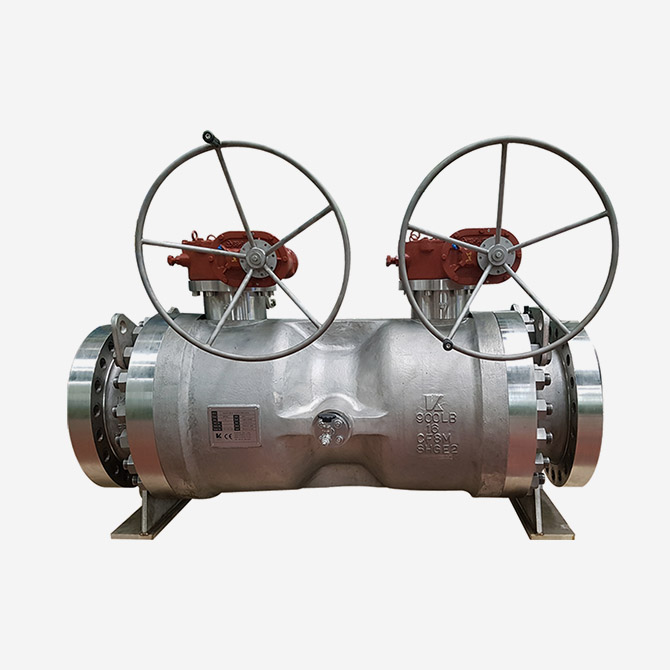

Double Block & Bleed Ball Valve
Manual Type / Pneumatic Cylinder Type / Hydraulic Cylinder Type
| MODEL | KM190 / KM190-APC / KM190-AHC |
|---|---|
| Service | NG, N2, H2, O2, CO2, Water, Steam |
| Temperature Range | -20 °C ~ 250 °C |
| Pressure Rating | Class 150 ~ 2500 |
| Size Range | 1/2″ ~ 24″ |
| Valve Design | Floating / Trunnion / Wedge |
| Material | Carbon Steel, Stainless Steel |
| Seat Material | Soft Seat (PTFE/RTFE/Nylon/Devlon/PEEK) or Metal |
| Operation | Lever / Gear Operated / Pneumatic Cylinder / Hydraulic Cylinder |
| End Connection | Flanged / Butt Weld / Socket Weld / Threaded |
| Feature | Bi-Directional Flow / Fire-Safe Design / Anti-Static / Low Emission Packing |
| Leakage Class | API598 / ASME B16.34 |
| Application | Oil & Gas / Petrochemical / Chemical / Process Industry |
Introduction
안전성 향상, 공간 절약, 비용 효율성 등의 주요 장점을 제공합니다.
상온 환경에서 신뢰할 수 있는 이중 격리 및 블리드(Double Block and Bleed, DBB) 기능을 단일 유닛으로 제공합니다.
